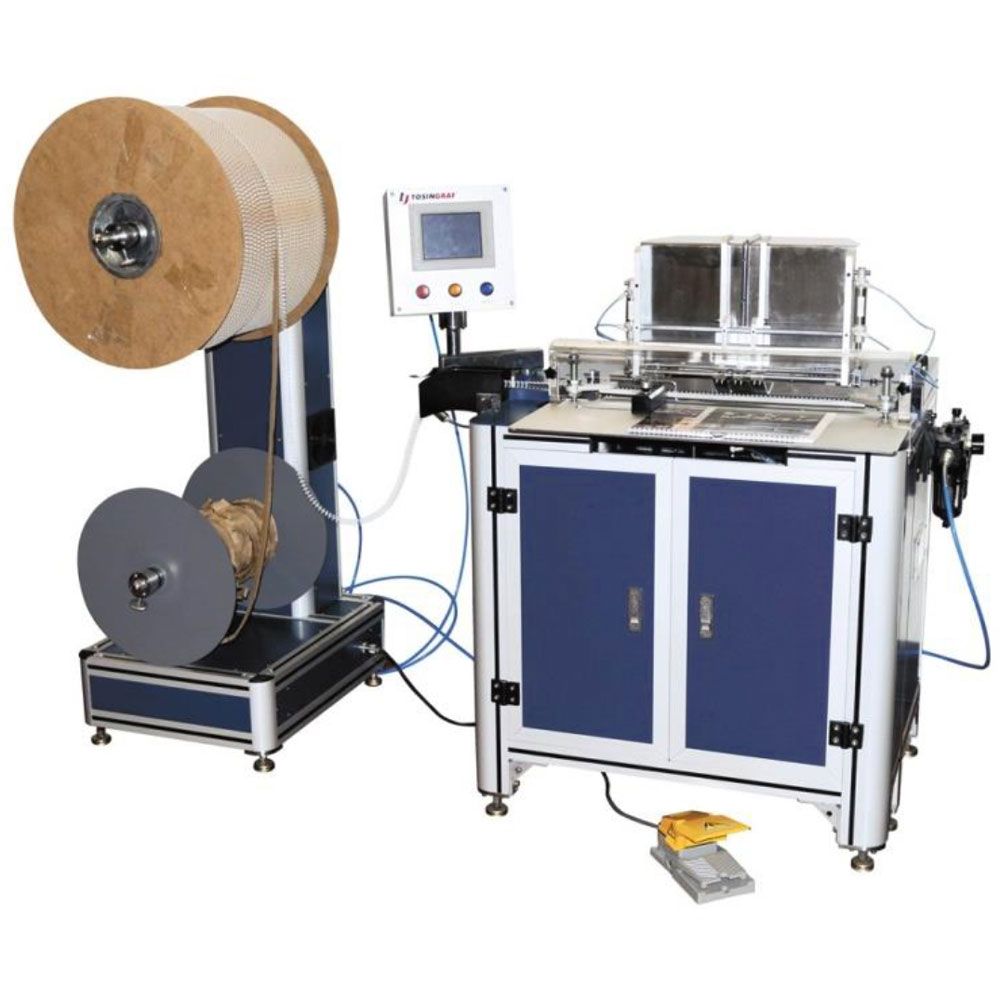

AutoWire
Professional semi-automatic double Wire binding machine
AutoWire is a professional semi-automatic binding machine for 3:1 or 2:1 pitch double loop Wires.
The perfect solution for any typography, copy shop or company that provides notebook binding or calendar production services.
Thanks to the integrated hanger insert module, the binding of the calendar is completely automated and requires no manual operations other than positioning and removing the block.
Productivity up to 1.300 books/hour for simple and intuitive use to the advantage of the operator who will only have to worry about positioning the block under the closing module, thus avoiding the complicated operations of manual insertion of the spiral Wire with the hanger.
A mold of your choice included in the price. Hanger insert module included. Air compressor excluded.
Speed: 1.000 - 1.300 cycles/hour
Maximum insertion width: 520 mm
Maximum binding width: 507 mm
Minimum binding width: 75 mm
Binding molds available: 1/4" - 7/8" (3:1 and 2:1 pitch)
Working surface: 660 x 300 mm
Operations: manual loading, spiral cutting, automatic insertion and closing
Hanger insert module: included
Wire spool holder: included
Air compressor: excluded (requires minimum 6-8 bar)
Power supply: 230V single phase 50Hz
Power consumption: 1.5 kW
Dimensions: 1.030 x 770 x 1.200 mm
Weight: 220 kg
