Electric heavy duty punching machine with a very solid structure. Built to last, it can adapt to different paper punching jobs thanks to it's interchangeable dies. It's equipped with a self-lubricating system to minimize stress and worn out when facing intesive use. The machine is provided with a tool upon request as listed below.

Continue reading

Technical specs Need Help?

Create your account

Access to product prices and save time by placing orders online

Register Sign in

Fast shipping in 24/48 hours

Secure payments

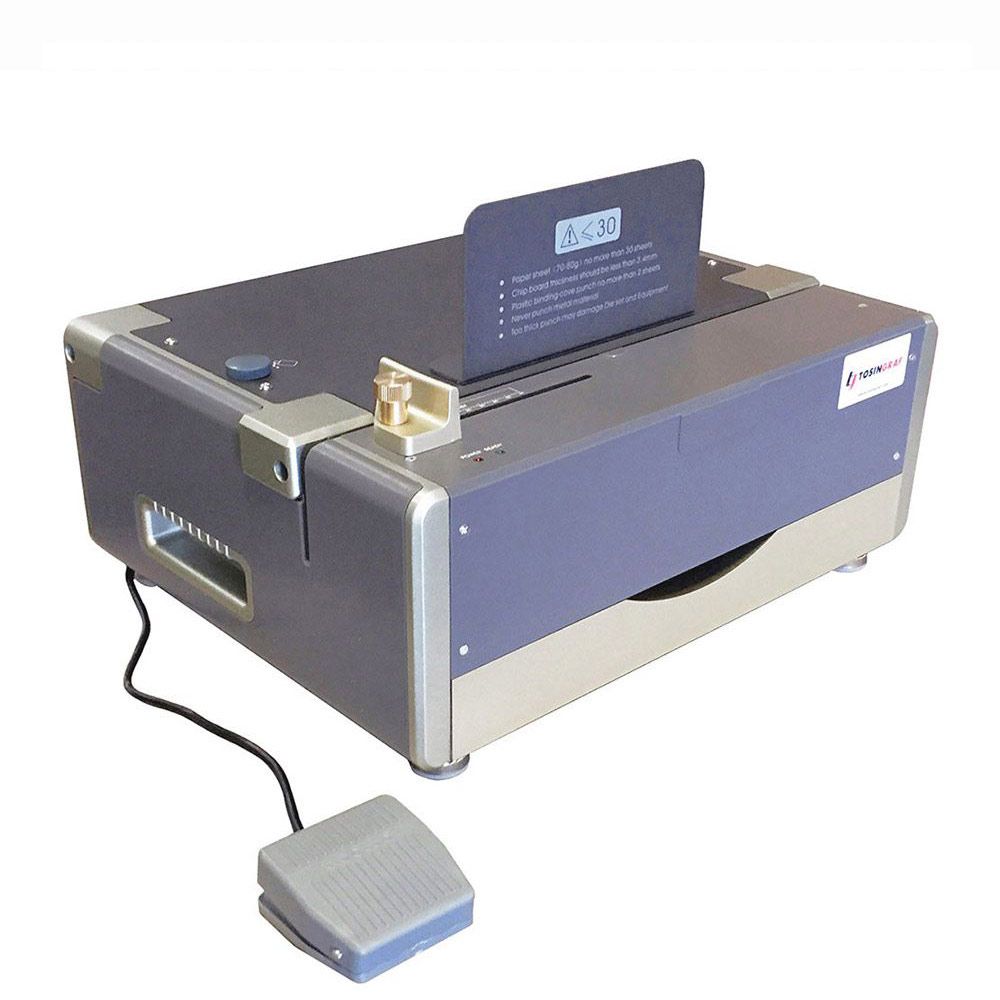

Modular heavy duty punching machine

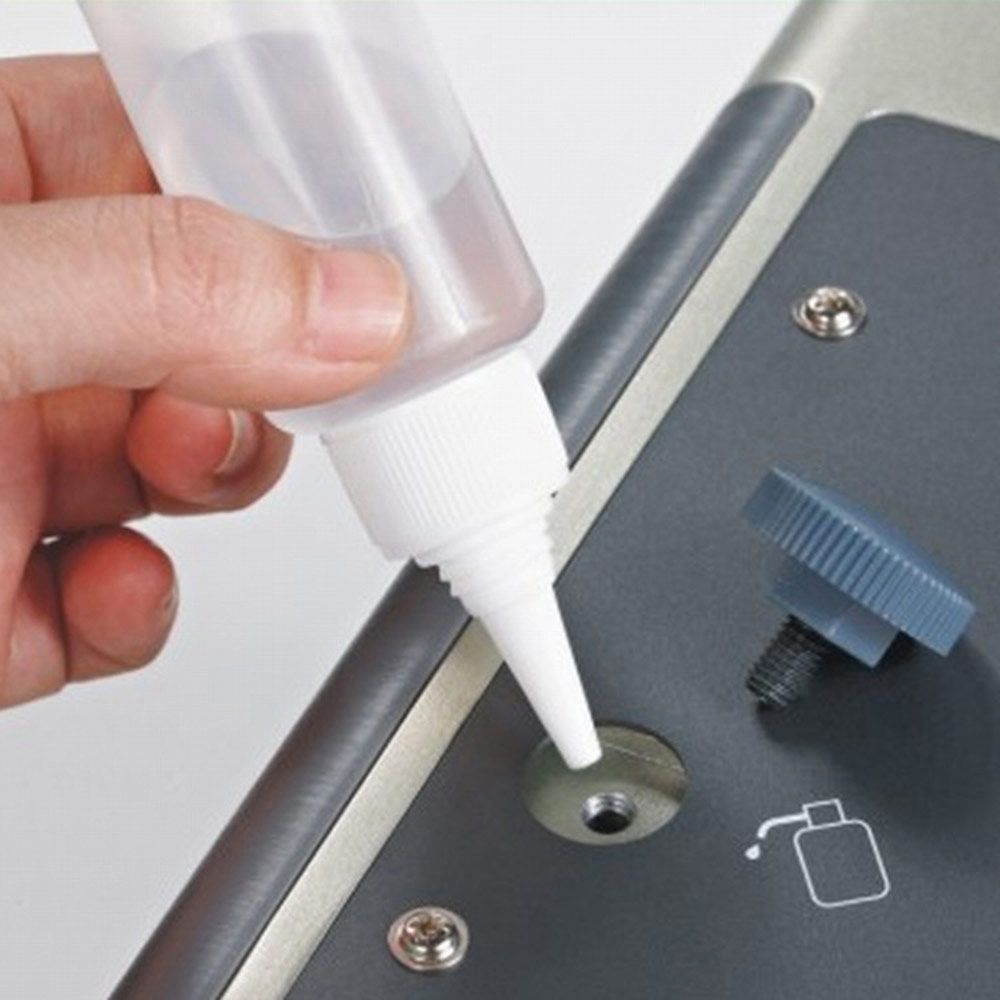

Electric heavy duty punching machine with a very solid structure. Built to last, it can adapt to different paper punching jobs thanks to it's interchangeable dies. It's equipped with a self-lubricating system to minimize stress and worn out when facing intesive use. The machine is provided with a tool upon request as listed below.

Working width: 320 mm
Open sideways allows the introduction of larger paper sizes
Adjustable marginal depth from 2 to 6 mm distance
Max punching thickness: 35 sheets of 80 gr

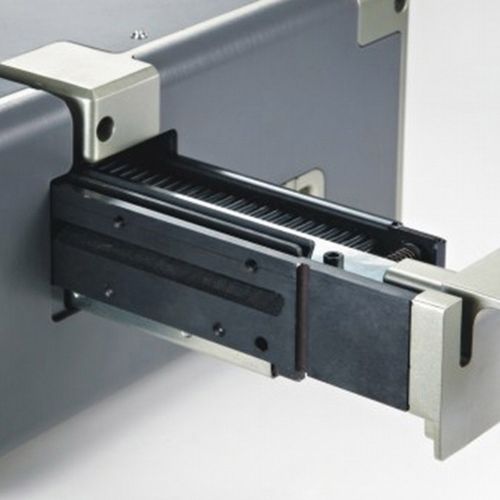

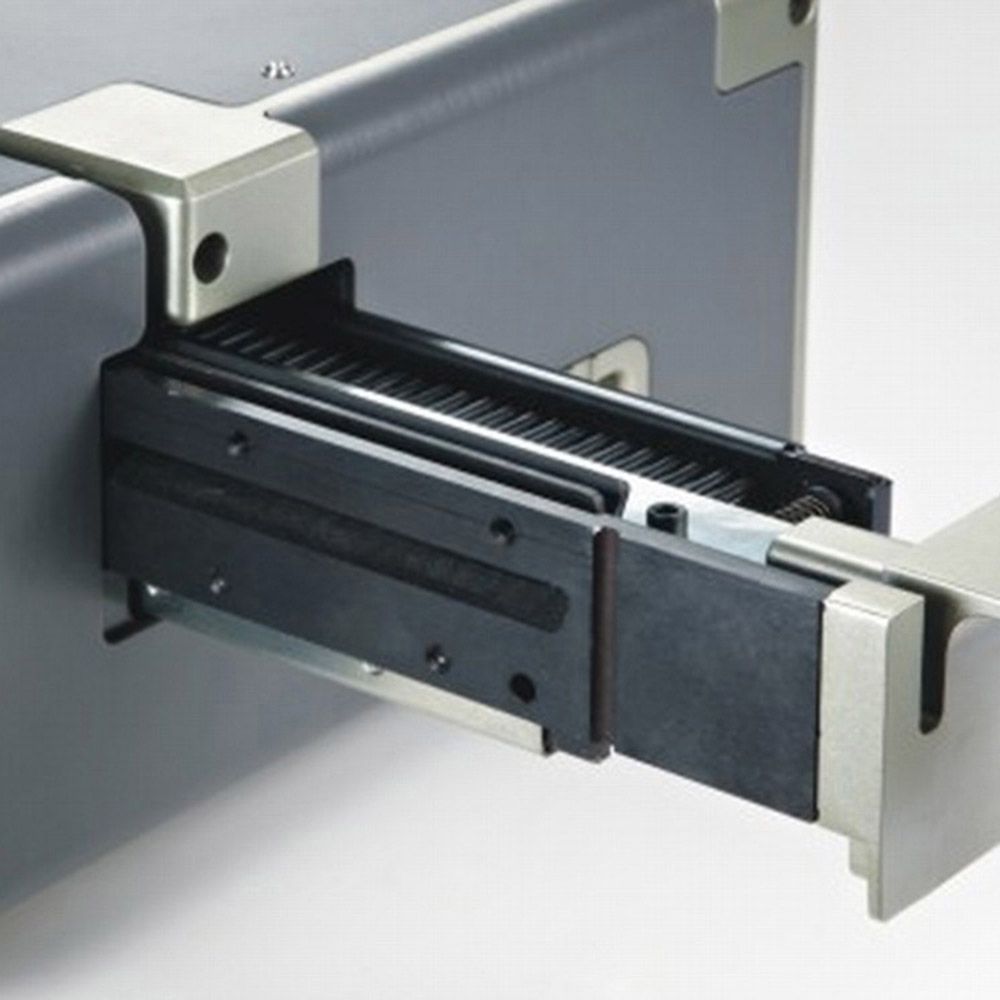

Disengageable dies
Electric pedal control and automatic punching function
Front paper chip removable drawer
220V - 400W
Dimensions: 460x360x185 mm
Weight: 32 kg

guide_cover_7

Recommended accessories

Plastic comb punching die - Pitch mm. 14,28 - Hole mm. 3x8

Plastic comb punching die - Pitch mm. 14,28 - Hole mm. 3x8

For MultiPerf 32

3:1 pitch calendar punching die - Hole mm. 4 round + thumb cut

3:1 pitch calendar punching die - Hole mm. 4 round + thumb cut

For MultiPerf 32

3:1 pitch punching die - Hole mm. 4x4 square

3:1 pitch punching die - Hole mm. 4x4 square

For MultiPerf 32

3:1 pitch punching die - Hole mm. 4 round

3:1 pitch punching die - Hole mm. 4 round

For MultiPerf 32

3:1 pitch punching die - Hole mm. 4x4 square

3:1 pitch punching die - Hole mm. 4x4 square

For MultiPerf 32

2:1 pitch punching die - Hole mm. 6 round

2:1 pitch punching die - Hole mm. 6 round

For MultiPerf 32

2:1 pitch punching die - Hole mm. 6x6 square

2:1 pitch punching die - Hole mm. 6x6 square

For MultiPerf 32

4:1 pitch (Coil) punching die - Hole mm. 4 round

4:1 pitch (Coil) punching die - Hole mm. 4 round

For MultiPerf 32
