TAB 262
SKU DTAB2T
Avail. Not available
High punching capacity thanks to remarkable solid structure and reliable technology, strong and silent with custom built motor. 2 fixed motorized drilling heads. The movable table flows on the bearings along a tabbed bar to stop accuratelly on 4 adjustable distances in case multiple hole on the same sheet. Excellent sheets locking system to avoid paper stack move during the drilling process. Adjustable hole depth up to 60 mm. The drill head move is manual through the lever. Paper residuals are collected in a specific drawer in the back of the machine. A specific punching cushioning system on the drilling head reduce the vibrations and result in a longer life time for the drill bits and better accuracy.

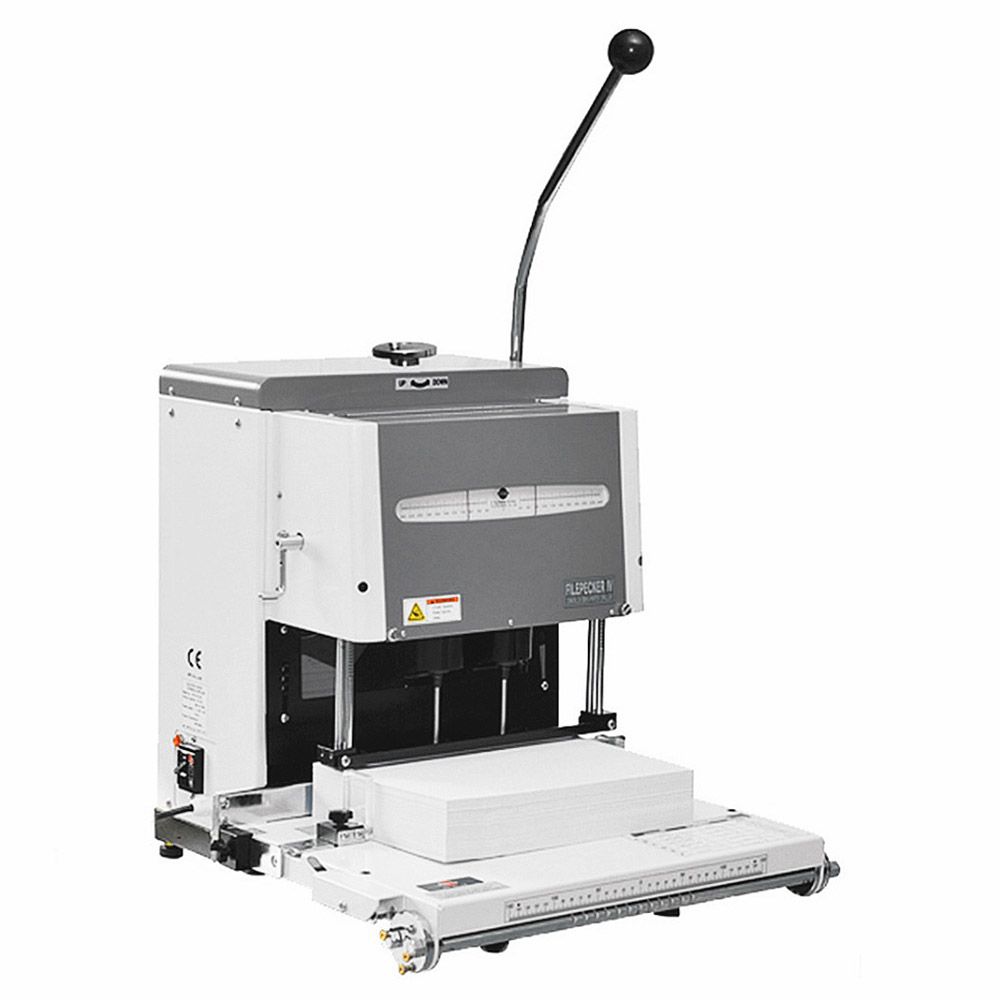

Two heads paper driller
High punching capacity thanks to remarkable solid structure and reliable technology, strong and silent with custom built motor. 2 fixed motorized drilling heads. The movable table flows on the bearings along a tabbed bar to stop accuratelly on 4 adjustable distances in case multiple hole on the same sheet. Excellent sheets locking system to avoid paper stack move during the drilling process. Adjustable hole depth up to 60 mm. The drill head move is manual through the lever. Paper residuals are collected in a specific drawer in the back of the machine. A specific punching cushioning system on the drilling head reduce the vibrations and result in a longer life time for the drill bits and better accuracy.
Numbers of perforation heads: 2 fixed
Maximum punching thicknes: 60 mm / 600 sheets
Drill bits diameter: 3-9 mm
Back gauge margin adjustment: 3-35 mm
Table dimension: 460x300 mm
Bits rotation: 1.650 rpm
Motor power: 380W
Voltage: 230V
Dimensions: 490x530x522 mm
Weight: 66 kg
Maximum punching thicknes: 60 mm / 600 sheets
Drill bits diameter: 3-9 mm
Back gauge margin adjustment: 3-35 mm
Table dimension: 460x300 mm
Bits rotation: 1.650 rpm
Motor power: 380W
Voltage: 230V
Dimensions: 490x530x522 mm
Weight: 66 kg
