Plasti 635
SKU DPG635
Avail. Available
Wider version of the Plasti 330 roll laminator. Double side laminator or single laminator thanks the indipendent lower roller heating system. Despite Plasti 330, this version does not include de-curling bar as it's mainly focused to double side lamination purposes. Independent control of heating on both rolls so to preserve back print in case of single side lamination. Adjustable film tension with side clutch. Long lasting silicone rollers for better heat distribution. IR contactless temperature sensors measure the actual temperature on top and bottom roller for more accurate temperature set. Made in Italy PCB integrated with MSC® Interface.
Roll laminator with MSC Interface
Wider version of the Plasti 330 roll laminator. Double side laminator or single laminator thanks the indipendent lower roller heating system. Despite Plasti 330, this version does not include de-curling bar as it's mainly focused to double side lamination purposes. Independent control of heating on both rolls so to preserve back print in case of single side lamination. Adjustable film tension with side clutch. Long lasting silicone rollers for better heat distribution. IR contactless temperature sensors measure the actual temperature on top and bottom roller for more accurate temperature set. Made in Italy PCB integrated with MSC® Interface.
Max paper width: 650 mm
Max laminating film width: 635 mm
Max laminating speed: 1.6 m/min.
Max temperature: 170°C
Max working thickness: 5 mm
Film thickness: 25 - 250 micron
Pressure adjustment: manual
Reverse function: yes

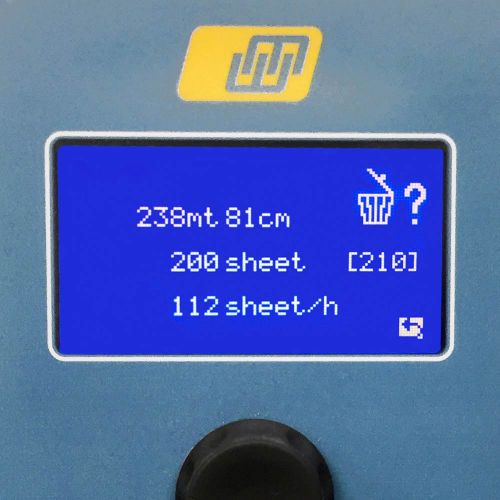

Control system: MSC® Interface
Energy saving function: yes
Power supply: 230 V - 50/60 Hz
Power consumption: 1.800 W
Dimensions: 970x490x390 mm
Weight: 38 kg
